K3SFN/K5FN有刷電機 /圓型鐵殼
用途： 印表機 、電動工具 、安全帶卷帶器 、電動按摩器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

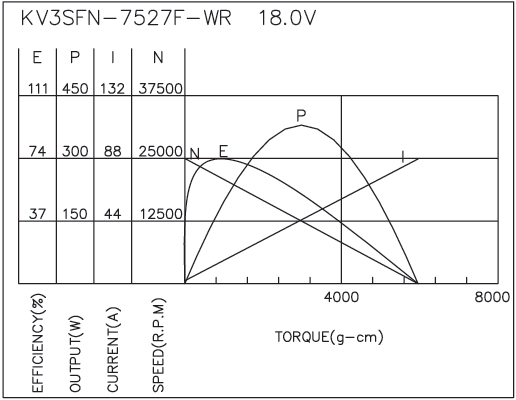

| KV3SFN-7527F-WR | 6.0-18.0 | 18.0V CONSTANT | 25000 | 2.10 | 21692 | 13.16 | 773 | 75.78 | 379.91 | 74 | 87.59 | 5958 | 584.12 |

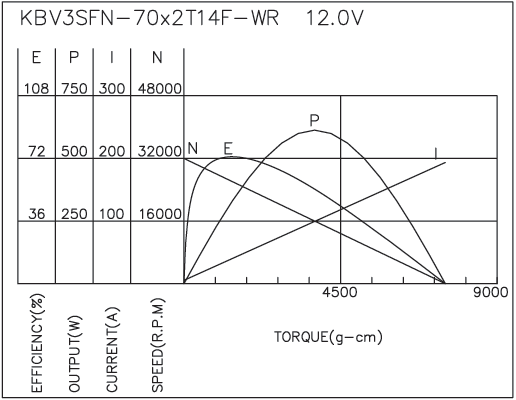

| KBV3SFN-70x2T14F-WR | 6.0-12.0 | 12.0V CONSTANT | 32000 | 5.40 | 24675 | 38.19 | 1236 | 121.18 | 569.43 | 72 | 193.64 | 7509 | 736.18 |

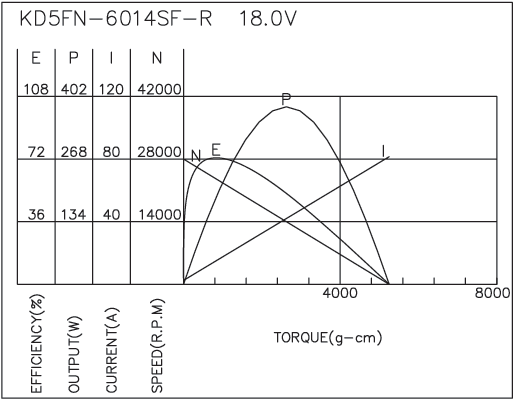

| KD5FN-6014SF-R | 12.0-18.0 | 18.0V CONSTANT | 28000 | 2.50 | 24038 | 14.49 | 759 | 74.41 | 187.37 | 72 | 81.47 | 5252 | 514.90 |

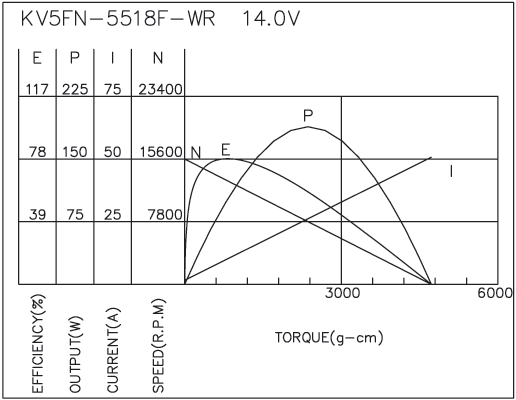

| KV5FN-5518F-WR | 12.0-18.0 | 14.4V CONSTANT | 15600 | 1.60 | 13889 | 7.98 | 610 | 59.8 | 77.57 | 78 | 50.80 | 4725 | 463.24 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
