BL3640無刷電機 /圓型鐵殼
用途： 泵浦 、機器人 、齒輪箱 、自動喂食器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

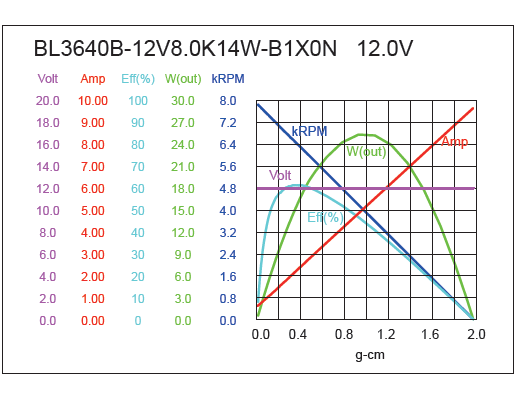

| BL3640B-12V8.0K14W-B1X0N | 10.0-30.0 | 12.0V CONSTANT | 8000 | 0.42 | 6596 | 2.05 | 212 | 20.78 | 14.36 | 62 | 9.69 | 1287 | 126.18 |

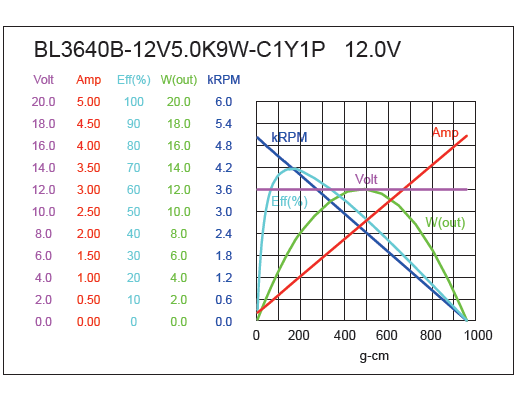

| BL3640B-12V5.0K9W-C1Y1P | 10.0-30.0 | 12.0V CONSTANT | 5000 | 0.17 | 4132 | 0.92 | 176 | 17.22 | 7.45 | 70 | 4.24 | 960 | 94.12 |

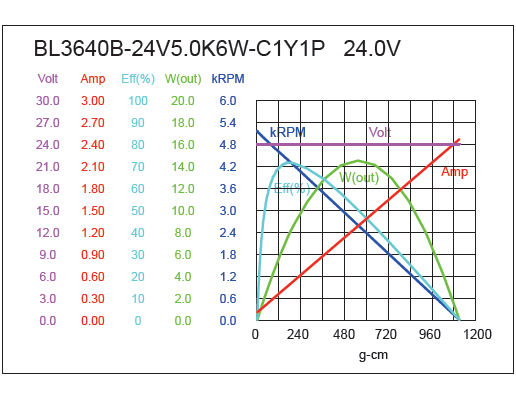

| BL3640B-24V5.0K6W-C1Y1P | 10.0-30.0 | 24.0V CONSTANT | 5000 | 0.09 | 4413 | 0.45 | 161 | 15.80 | 7.31 | 72 | 2.47 | 1112 | 109.02 |
| BL3640B-24V9.0K15W-C1Y1P | 10.0-30.0 | 24.0V CONSTANT | 9000 | 0.16 | 7746 | 1.01 | 222 | 21.76 | 17.66 | 76 | 5.84 | 1497 | 146.76 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
