BL3649無刷電機 /圓型鐵殼
用途： 割草機 、泵浦 、自動販賣機 、機器人 、齒輪箱 、電動腳踏車 、切割機
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| BL3649B-24V5.0K13W-B1X0N | 10.0-30.0 | 24.0V CONSTANT | 5000 | 0.16 | 4484 | 0.72 | 286 | 28.04 | 13.17 | 81 | 5.23 | 2379 | 232.24 |

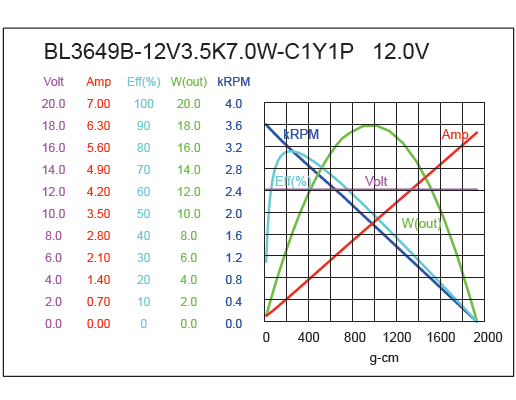

| BL3649B-12V3.5K7.0W-C1Y1P | 10.0-30.0 | 12.0V CONSTANT | 3500 | 0.16 | 3135 | 0.85 | 242 | 23.73 | 7.79 | 78 | 6.04 | 1936 | 189.80 |
| BL3649B-12V10.5K38W-B1X0N | 10.0-30.0 | 12.0V CONSTANT | 10300 | 0.60 | 9042 | 3.83 | 379 | 37.16 | 35.19 | 78 | 25.92 | 2948 | 289.02 |

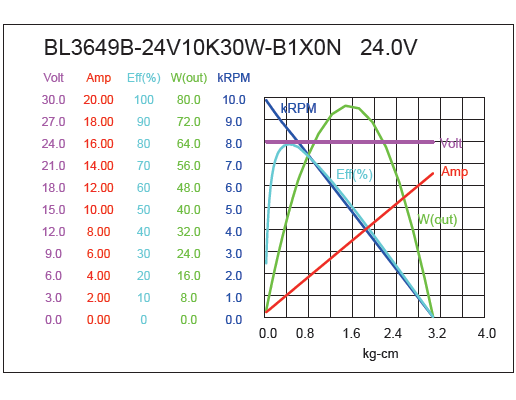

| BL3649B-24V10K30W-B1X0N | 10.0-30.0 | 24.0V CONSTANT | 10000 | 0.35 | 8532 | 2.17 | 438 | 42.94 | 38.38 | 79 | 13.19 | 3081 | 302.06 |

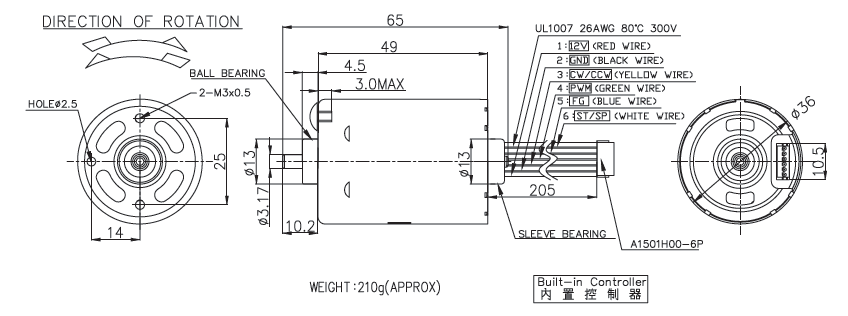

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
