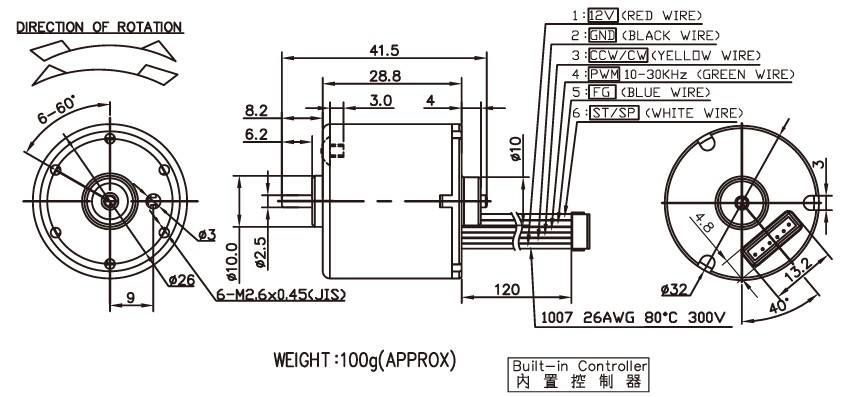

BL3229無刷電機 /圓型鐵殼
用途： 吹風機 、自動喂食器
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| BL3229B-24V6.0K4.0W-B0X0N | 9.0-30.0 | 24.0V CONSTANT | 6000 | 0.72 | 4864 | 0.39 | 90.42 | 8.86 | 4.52 | 65 | 1.46 | 499.32 | 48.95 |

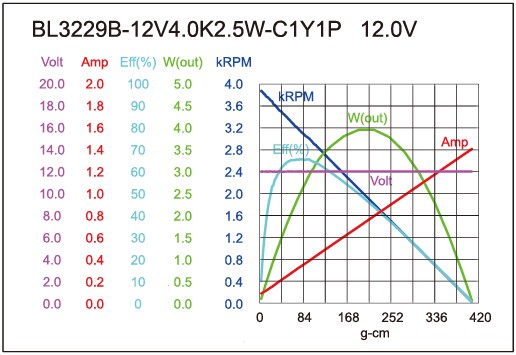

| BL3229B-12V4.0K2.5W-C1Y1P | 9.0-30.0 | 12.0V CONSTANT | 4000 | 0.70 | 3053 | 0.36 | 89.96 | 8.82 | 2.82 | 66 | 1.42 | 409.56 | 40.15 |

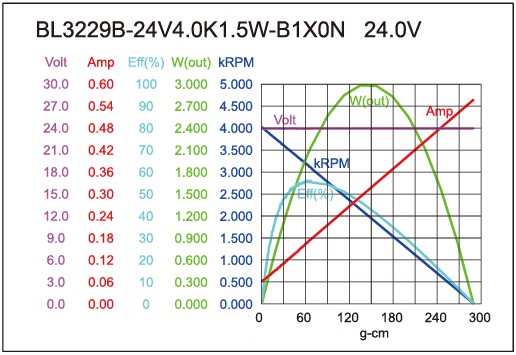

| BL3229B-24V4.0K1.5W-B1X0N | 9.0-30.0 | 24.0V CONSTANT | 4000 | 0.05 | 3126 | 0.17 | 66.04 | 6.04 | 2.12 | 56 | 0.56 | 290.30 | 28.46 |

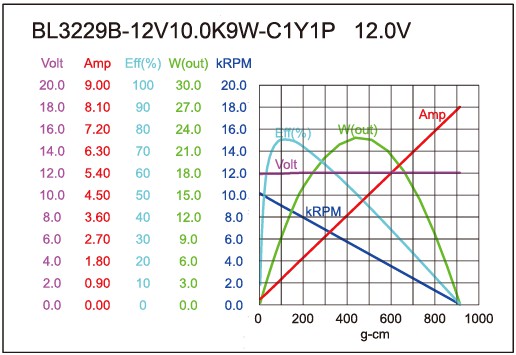

| BL3229B-12V10.0K9W-C1Y1P | 9.0-30.0 | 12.0V CONSTANT | 10200 | 0.18 | 9107 | 1.03 | 98.17 | 9.62 | 9.18 | 76 | 8.14 | 916.81 | 89.88 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
